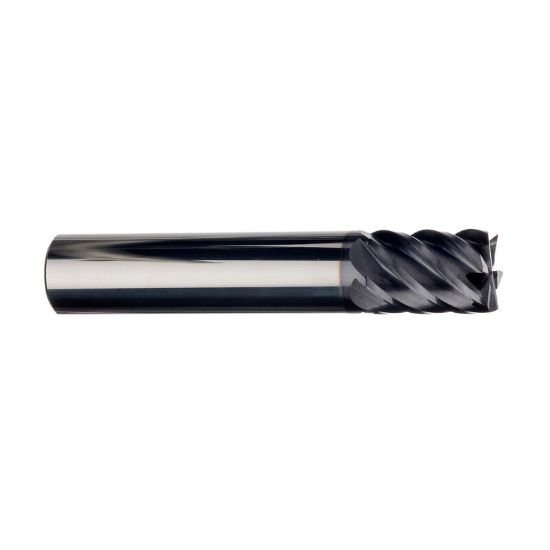

Picture of Imco 63199 Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.50 End Mill Carbide TiAlN Single End Square Sharp Omega-6 Mill

Imco 63199 Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.50 End Mill Carbide TiAlN Single End Square Sharp Omega-6 Mill

Part Number: IMC63199 0.625 x 0.625 x 0.750 x 3.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1232343
Vendor: Sussex Tool and Supply
$186.90

Description

IMCO End Mill Carbide TiAlN Square Sharp Flutes 6 Single End Omega-6 Mill Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 6
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Helix Angle 45
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
