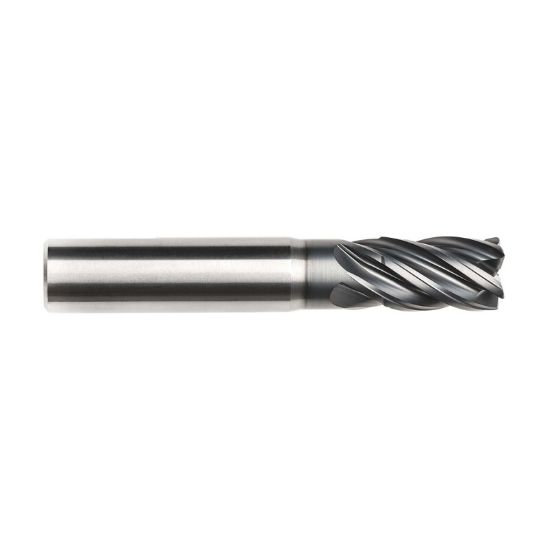

IMCO 61875 DIA 20MM SH 0.7874 LOC 1.1811 OAL4.9213 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1575 4.00MM Pow-R-Path Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61875
Delivery date: 3-5 days
$627.22
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Coating TAC
Material # Material#25, Material#20, Material#42
Sold by Pieces 1
Application Side Milling, Slot Milling, Copy Milling, Face Milling, Profile Milling
Shipping State Ohio
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Performance Rating High Performance
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.7874 20.00MM
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Corner Radius 0.1575 4.00MM
Machine Side CYLINDRICAL0.7874
Flutes/Inserts 5
Dimension Description 0.787 x 0.787 x 1.181 x 4.921 LBS = 2.441
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Overall Len 4.9213 125.00MM
Cutter Style Carbide Bull Nose Finisher
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Neck Length 2.4409 62.00MM
Helix Angle 35°
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
