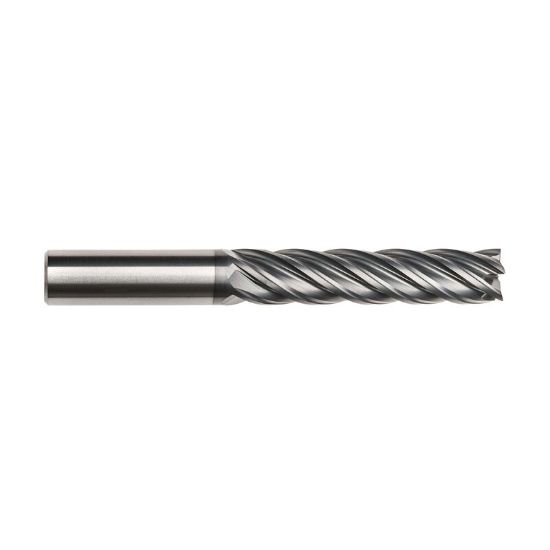

IMCO 61818 DIA 20MM SH 0.7874 LOC 3.1496 OAL5.9055 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0984 2.50MM Pow-R-Path Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61818
Delivery date: 3-5 days
$635.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Package Size 1
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Material # Material#20, Material#25, Material#42
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Shipping State Ohio
Sold by Pieces 1
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Coating TAC
Uncategorized
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0984 2.50MM
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Helix Angle 35°
Machine Side CYLINDRICAL0.7874
Flutes/Inserts 5
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.787 x 0.787 x 3.150 x 5.906
Machine Side Connection Size 0.7874 20.00MM
Overall Len 5.9055 150.00MM
Length Of Cut 3.1496 80.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
