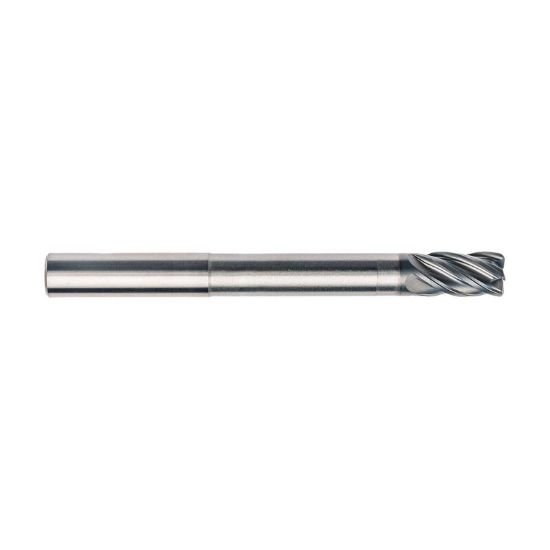

Picture of Imco 61697 Dia 1 SH 1.00 LOC 1.50 OAL7.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.2500 6.35mm Pow-R-Path Mill

Imco 61697 Dia 1 SH 1.00 LOC 1.50 OAL7.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.2500 6.35mm Pow-R-Path Mill

Part Number: IMC61697 1.000 x 1.000 x 1.500 x 7.000 LBS = 4.125
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231862
Vendor: Sussex Tool and Supply
$847.90

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.2500 6.35MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Length Of Cut 1.5000 38.10MM
Neck Length 4.1250 104.78MM
Geometry & Angles
Corner Radius 0.2500 6.35MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
