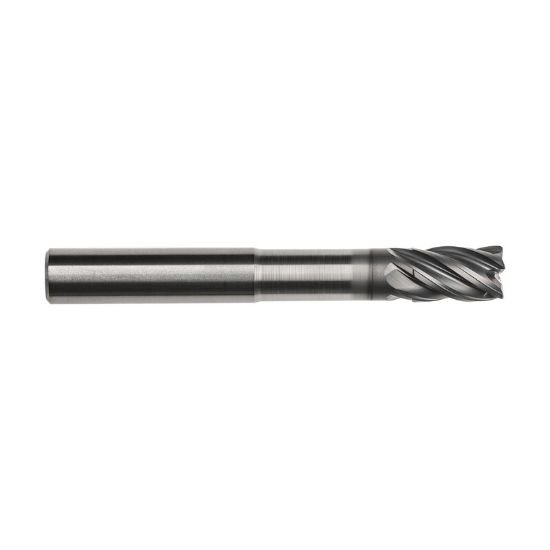

Picture of Imco 61692 Dia 1 SH 1.00 LOC 1.50 OAL6.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1250 3.18mm Pow-R-Path Mill

Imco 61692 Dia 1 SH 1.00 LOC 1.50 OAL6.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1250 3.18mm Pow-R-Path Mill

Part Number: IMC61692 1.000 x 1.000 x 1.500 x 6.000 LBS = 3.125
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231857
Vendor: Sussex Tool and Supply
$711.84

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.1250 3.18MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Length Of Cut 1.5000 38.10MM
Neck Length 3.1250 79.38MM
Geometry & Angles
Corner Radius 0.1250 3.18MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
