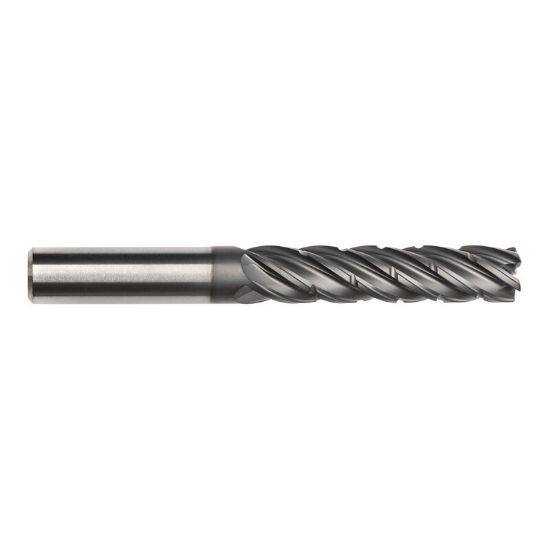

IMCO 61477 DIA 20MM SH 0.7874 LOC 2.7559 OAL5.3150 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0394 1.00MM Pow-R-Path Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61477
Delivery date: 3-5 days
$676.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#42, Material#20
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Package Size 1
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Coating TAC
Sold by Pieces 1
Shipping State Ohio
Performance Rating High Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.787 x 0.787 x 2.756 x 5.315
Machine Side CYLINDRICAL0.7874
Flutes/Inserts 5
Corner Radius 0.0394 1.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 35°
Single/Double End Single End
Cutter Dia 0.7874 20.00MM
Overall Len 5.3150 135.00MM
Length Type Long
Inch/Metric Metric
Machine Side Connection Size 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Length Of Cut 2.7559 70.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
