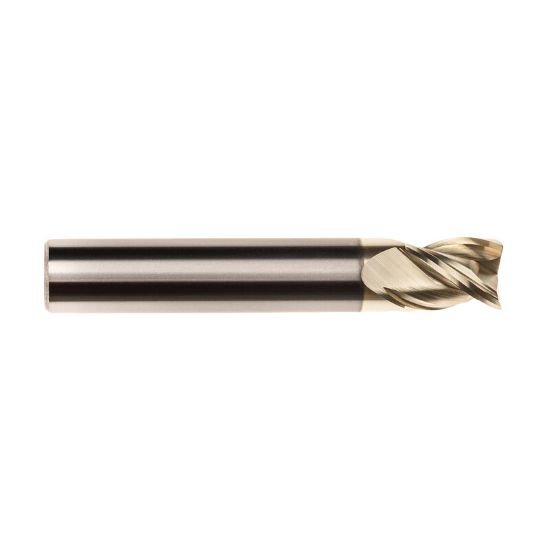

Picture of Imco 61026 Dia 3/8 Sh 0.3750 Loc 0.9375 Oal2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm Streaker Mill

Imco 61026 Dia 3/8 Sh 0.3750 Loc 0.9375 Oal2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm Streaker Mill

Part Number: IMC61026

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1003067
Vendor: Sussex Tool and Supply
$78.59

IMCO carbide end mill has high helix standard flute. Single end corner radius 0.0150 0.38mm. Cylindrical connection 0.3750. Made in USA.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3750

Grades & Coatings

  • Alternate Description: IMCO High Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM Standard Flute Flutes 3 Single End Streaker Mill

Other Details

  • Brand: IMCO
  • Shipping State: OHIO
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with high helix design. Performs standard flute operations. Suitable for corner radius 0.0150 on end mills.

Composition

Carbide uncoated tool material. Cylindrical connection 0.3750. Standard flute design.

Typical Uses

Used in machine side toolpost setups. Operates with 0.3750 cylindrical mount. Applied in end milling tasks with 0.38mm corner radius.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3750
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.3750 9.52MM - 3/8
Family Group Streaker Mill
Coolant Thru Non Coolant
Mach Side Connection Size 0.3750 9.53MM - 3/8
Tool Diameter 0.3750 9.53MM - 3/8
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 0.9375 23.81MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0150 0.38MM
Inch Or Metric Inch
Helix Angle 45°
Center Cutting Center Cutting
