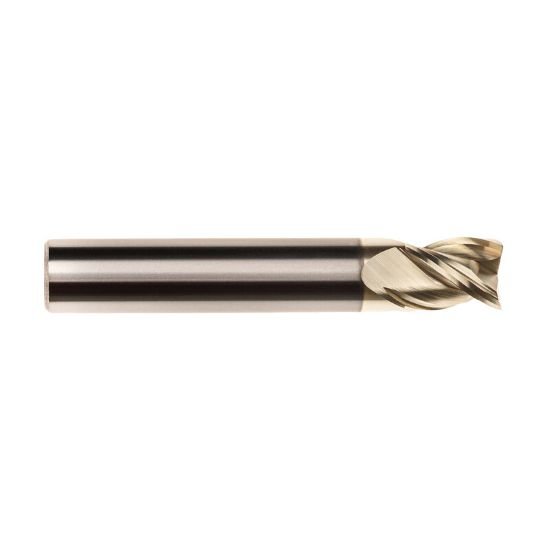

Picture of Imco 61022 Dia 5/16 Sh 0.3125 Loc 1.3750 Oal3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Imco 61022 Dia 5/16 Sh 0.3125 Loc 1.3750 Oal3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Part Number: IMC61022

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1003358
Vendor: Sussex Tool and Supply
$93.25

IMCO high helix carbide uncoated end mill with standard flute square sharp single end streaker machine post cylindrical connection. Made in USA, cylindrical toolpost connection 0.3125. Tool material: carbide. Standard flute square sharp single end streaker mill.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3125

Grades & Coatings

  • Alternate Description: IMCO High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 3 Single End Streaker Mill

Other Details

  • Brand: IMCO
  • Shipping State: OHIO
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with high helix design. Performs standard flute operations. Used in milling tasks with square sharp edge.

Composition

Carbide, uncoated, cylindrical connection, 0.3125 inch diameter.

Typical Uses

Milling operations, toolpost mounting, standard flute cutting, end mill functions.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3125
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.3125 7.93MM - 5/16
Family Group Streaker Mill
Coolant Thru Non Coolant
Mach Side Connection Size 0.3125 7.94MM - 5/16
Tool Diameter 0.3125 7.94MM - 5/16
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.3750 34.93MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 45°
Center Cutting Center Cutting
