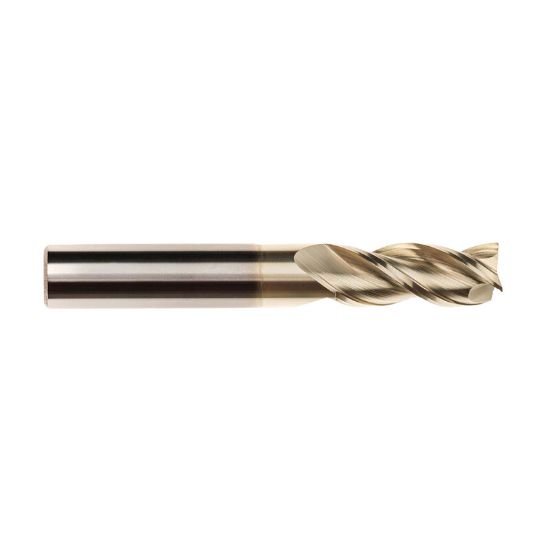

Picture of Imco 61017 Dia 1/4 Sh 0.2500 Loc 1.00 Oal3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm Streaker Mill

Imco 61017 Dia 1/4 Sh 0.2500 Loc 1.00 Oal3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm Streaker Mill

Part Number: IMC61017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1003024
Vendor: Sussex Tool and Supply
$83.78

IMCO carbide end mill with high helix standard flute single end corner radius 0.0150 cylindrical 0.2500 toolpost connection. Made in USA, cylindrical 0.2500 machine side connection. Toolpost connection type cylindrical. Corner radius 0.0150 standard flute.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2500

Grades & Coatings

  • Alternate Description: IMCO High Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM Standard Flute Flutes 3 Single End Streaker Mill

Other Details

  • Brand: IMCO
  • Shipping State: OHIO
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with high helix design. Performs standard flute operations. Suitable for streaker mill tasks.

Composition

Carbide uncoated tool material. Cylindrical connection 0.2500. Corner radius 0.0150.

Typical Uses

Used in machine toolpost setups. Operates with standard flute end mills. Applied in end milling tasks.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.2500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.2500 6.35MM - 1/4 - E
Family Group Streaker Mill
Coolant Thru Non Coolant
Mach Side Connection Size 0.2500 6.35MM - 1/4 - E
Tool Diameter 0.2500 6.35MM - 1/4 - E
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0150 0.38MM
Inch Or Metric Inch
Helix Angle 45°
Center Cutting Center Cutting
