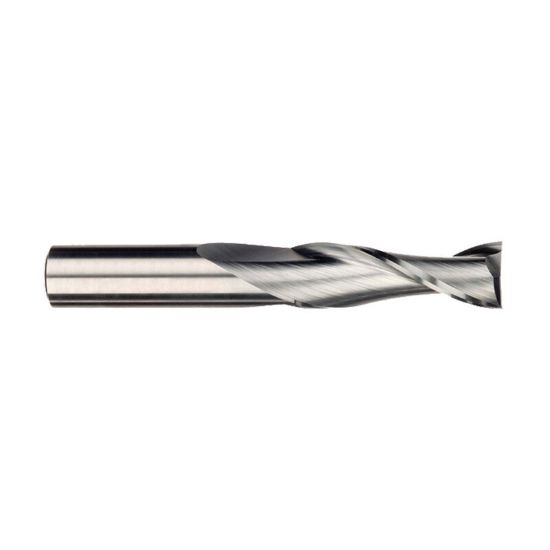

IMCO 37608 DIA 1/8 SH 0.1250 LOC 0.7500 OAL2.2500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp GENERAL PURPOSE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC37608
Delivery date: 3-5 days
$23.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Material # Material#15, Material#18, Material#2, Material#8
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Shipping State Ohio
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Dimension Description 0.125 x 0.125 x 0.750 x 2.250
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.2500 57.15MM
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
End Of Tool Shape Square
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side CYLINDRICAL0.1250
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
