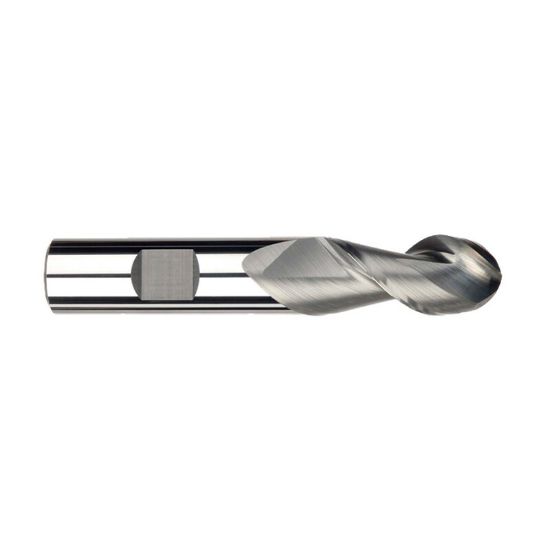

IMCO 32599 DIA 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC32599
Delivery date: 3-5 days
$213.82
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Application Ball Slot Milling, Side Milling, Copy Milling, Ball Milling, Profile Milling
Shipping State Ohio
Additional Key Information 2 Ball Nose
Package Size 1
Sold by Pieces 1
Performance Rating High Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Dimension Description 0.625 x 0.625 x 1.250 x 3.500
Cut Rating Aluminum, Graphite, Plastic
Machine Side WELDON0.6250
Tool Material Carbide
Inch/Metric Inch
Overall Len 3.5000 88.90MM
Length Type Standard
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Helix Angle 45°
Machine Side Connection Size 0.6250 15.88MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
