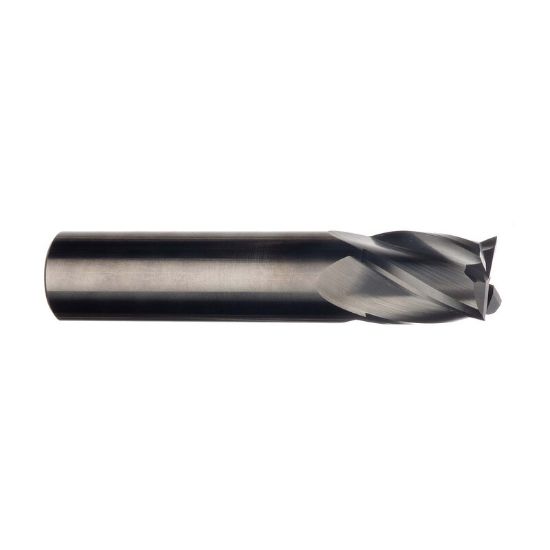

IMCO 31479 DIA 5MM SH 0.1969 LOC 0.6299 OAL1.9685 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp GENERAL PURPOSE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC31479
Delivery date: 3-5 days
$23.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#2, Material#18, Material#8
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 2 Sharp
Application Side Milling, Slot Milling, Face Milling
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Shipping State Ohio
Additional Key Information 4 Standard Helix
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Square
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Overall Len 1.9685 50.00MM
Helix Angle 30°
Dimension Description 0.197 x 0.197 x 0.630 x 1.969
Flutes/Inserts 4
Inch/Metric Metric
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.6300 16.00MM
Single/Double End Single End
Machine Side CYLINDRICAL0.1969
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
