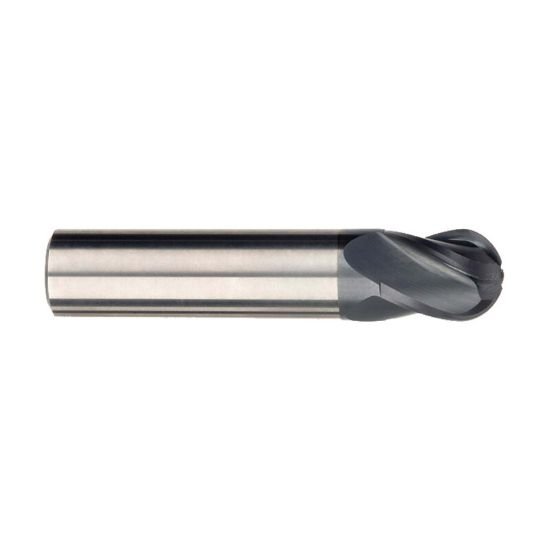

Picture of Imco 30409 Dia 9/16 Sh 0.5625 Loc 1.2500 Oal3.50 End Mill Standard Flute Standard Helix Carbide Altin Single End Ball Noseball General Purpose

Imco 30409 Dia 9/16 Sh 0.5625 Loc 1.2500 Oal3.50 End Mill Standard Flute Standard Helix Carbide Altin Single End Ball Noseball General Purpose

Part Number: IMC30409

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1002372
Vendor: Sussex Tool and Supply
$171.81

IMCO carbide ball nose end mill has standard flute and helix. Coated in AlTiN. Machine post cylindrical 0.5625. Made in USA.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.5625

Grades & Coatings

  • Alternate Description: IMCO Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End GENERAL PURPOSE

Other Details

  • Brand: IMCO
  • Shipping State: OHIO
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for general purpose use. Suitable for ball nose end milling operations.

Composition

Carbide, AlTiN coating, cylindrical connection 0.5625.

Typical Uses

End milling, general purpose cutting, ball nose operations at location 1.2500, overall length 3.50.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.5625
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.5625 14.29MM - 9/16
Family Group General Purpose
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 0.5625 14.29MM - 9/16
Tool Diameter 0.5625 14.29MM - 9/16
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
