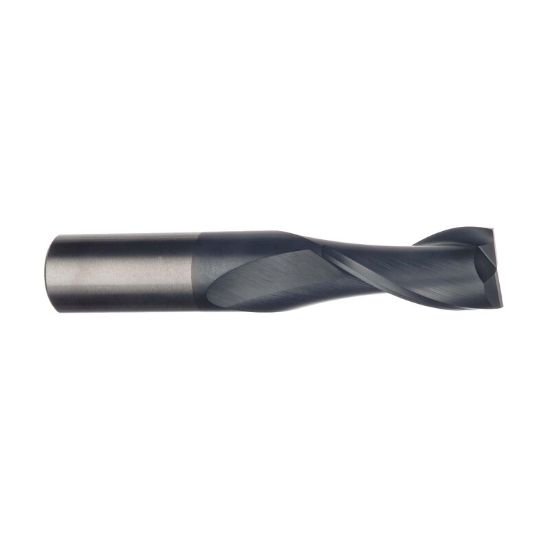

Picture of Imco 30345 Dia 11/64 Sh 0.1875 Loc 0.6250 Oal2.00 End Mill Standard Flute Standard Helix Carbide Altin Single End Square Sharp General Purpose

Imco 30345 Dia 11/64 Sh 0.1875 Loc 0.6250 Oal2.00 End Mill Standard Flute Standard Helix Carbide Altin Single End Square Sharp General Purpose

Part Number: IMC30345

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1002697
Vendor: Sussex Tool and Supply
$28.37

IMCO carbide end mill with AlTiN coating has cylindrical 0.1875 shank. It features standard flute, standard helix, square sharp shape. Tool connects to machine post via CYLINDRICAL0.1875. Made in USA, standard general purpose use.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: IMCO Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 2 Single End GENERAL PURPOSE

Other Details

  • Brand: IMCO
  • Shipping State: OHIO
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. General purpose use for milling operations. Designed for standard toolpost connection.

Composition

Carbide, AlTiN coating, cylindrical connection.

Typical Uses

Milling, general purpose cutting, standard toolpost applications.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.0000 50.80MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group General Purpose
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1719 4.36MM - 11/64
Flutes Or Inserts 2
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
