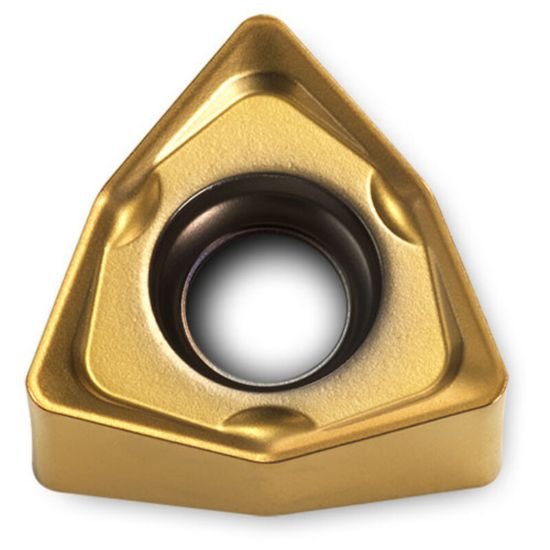

Picture of ICE 6NGU 090508-M CT5420 Milling Insert Trigon 0.032 Corner Radius TiAIn + TiN

ICE 6NGU 090508-M CT5420 Milling Insert Trigon 0.032 Corner Radius TiAIn + TiN

Part Number: ICE88025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: 1001695
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

ICE Trigon milling insert with TiAIN and TiN coating grade IT5420. Made in Usa: No. Shipping state: WISCONSIN. Alternate description: ICE 88025 Trigon Insert Negative TiAIN + TiN 6NGU 090508-M CT5420 6NGU 090508-M CT5420.

Key Details

Materials & Finish

  • Coating: TiAIN + TiN
  • Grade: IT5420

Grades & Coatings

  • Alternate Description: ICE 88025 Trigon Insert Negative TiAIN + TiN 6NGU 090508-M CT5420 6NGU 090508-M CT5420

Other Details

  • Brand: ICE
  • Shipping State: WISCONSIN
  • Made In Usa: No

Technical Overview

What It Does

Milling insert with trigon shape. Performs cutting with corner radius 0.032. Used in milling operations with TiAIN + TiN coating.

Composition

TiAIN + TiN coating. Grade IT5420. Trigon shape with 0.032 corner radius.

Typical Uses

Milling operations. Fits CT5420 specification. Used in cutting tools with trigon design.

Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiAIN + TiN
Insert Or Tool Insert
Insert Application Medium
Corner Radius 0.0320 0.81MM
Insert Style 6N
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Negative
Insert Size (IC) 9
Grade IT5420
Insert Fits Trigon
Depth Of Cut Max 0.3620
