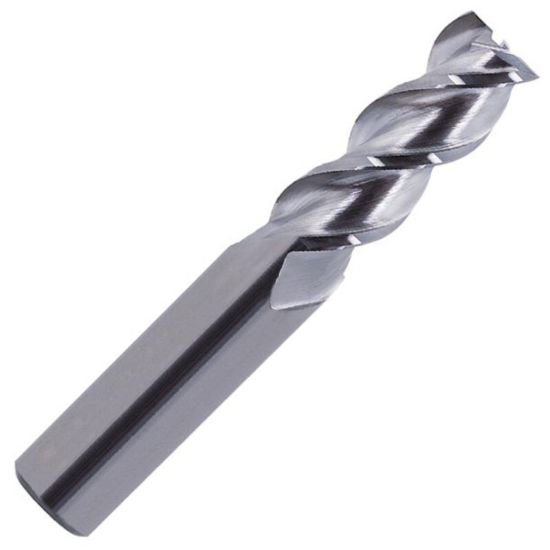

ICE 570-750-3-030R DIA 3/4 SH 0.7500 LOC 1.6250 OAL4.00 End Mill Standard Flute Variable Helix Carbide Single End Corner Radius0.0300 0.76MM Green

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE789287
Delivery date: 3-5 days
$134.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#42, Material#20
Additional Key Information 4 Variable Helix
Shipping State Wisconsin
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 2 Corner Radius
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Cut Rating Aluminium, Plastic
Tool Material Carbide
Inch/Metric Inch
Machine Side CYLINDRICAL0.7500
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Overall Len 4.0000 101.60MM
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Corner Radius 0.0300 0.76MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
