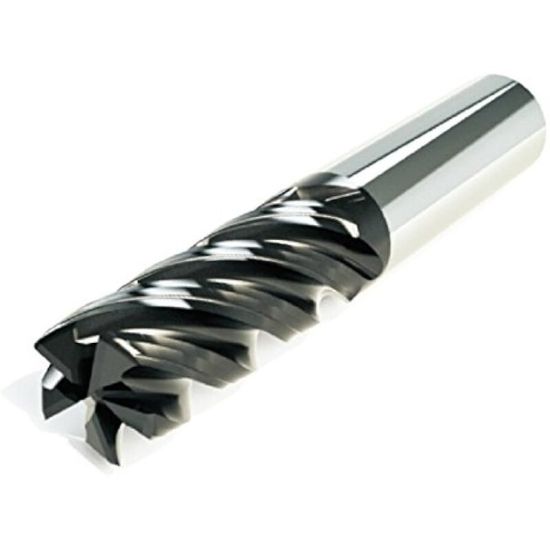

ICE 488-375-5-030R DIA 3/8 SH 0.3750 LOC 2.1250 OAL4.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790128
Delivery date: 3-5 days
$70.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Variable Helix
Sold by Pieces 1
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Material # Material#16, Material#7, Material#8, Material#10
Shipping State Wisconsin
Additional Key Information 2 Corner Radius
Coating ALL4
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 5
Flute Length 2.1250 53.98MM
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 2.1250 53.98MM
Length Type Standard
Corner Radius 0.0300 0.76MM
Overall Len 4.0000 101.60MM
Dimension Description 0.375 x 0.375 x 2.125 x 4.000
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Machine Side CYLINDRICAL0.3750
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
