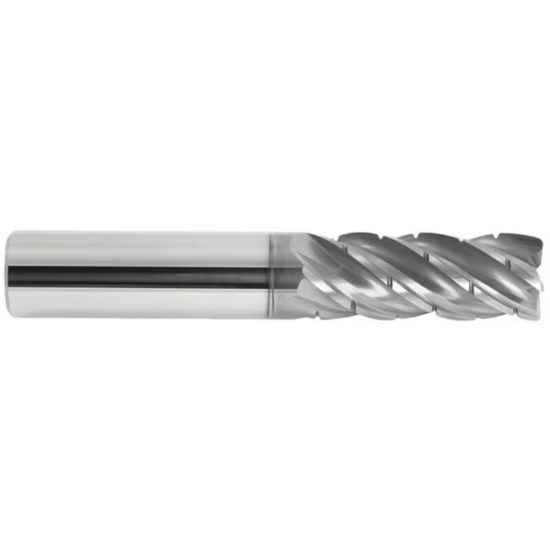

ICE 480-625-5-030R DIA 5/8 SH 0.6250 LOC 1.6250 OAL3.50 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790214
Delivery date: 3-5 days
$108.09
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Variable Helix
Additional Key Information 2 Corner Radius
Coating ALL4
Package Size 1
Sold by Pieces 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Material # Material#10, Material#8, Material#16, Material#7
Shipping State Wisconsin
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Length Of Cut 1.6250 41.28MM
Dimension Description 0.625 x 0.625 x 1.625 x 3.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side CYLINDRICAL0.6250
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle Variable
Overall Len 3.5000 88.90MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
