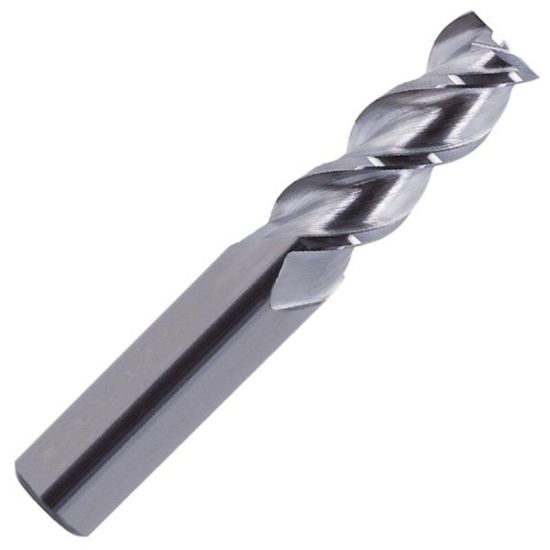

ICE 470-750-3 DIA 3/4 SH 0.7500 LOC 1.6250 OAL4.00 End Mill Standard Flute Variable Helix Carbide ZrN Single End Square Sharp Green

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE789323
Delivery date: 3-5 days
$158.08
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Used for Aluminum and other non-ferrous materials

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#42, Material#20
Additional Key Information 4 Variable Helix
Package Size 1
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 2 Sharp
Coating ZrN
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Shipping State Wisconsin
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Length Of Cut 1.6250 41.28MM
Cut Rating Aluminium, Plastic
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side CYLINDRICAL0.7500
Overall Len 4.0000 101.60MM
Dimension Description 0.750 x 0.750 x 1.625 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Helix Angle Variable
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
