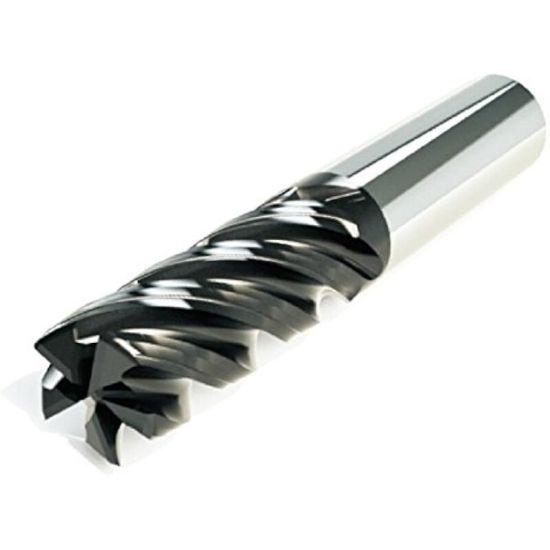

ICE 388-375-5-015R DIA 3/8 SH 0.3750 LOC 2.1250 OAL4.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius0.0150 0.38MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790112
Delivery date: 3-5 days
$70.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#10, Material#16, Material#7
Additional Key Information 3 Standard Flute
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Additional Key Information 2 Corner Radius
Sold by Pieces 1
Additional Key Information 1 End Mill
Performance Rating High Performance
Shipping State Wisconsin
Additional Key Information 4 Variable Helix
Coating ALL4
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 2.125 x 4.000
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
End Of Tool Shape Corner Radius
Helix Angle Variable
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 2.1250 53.98MM
Length Type Standard
Overall Len 4.0000 101.60MM
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0150 0.38MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flute Length 2.1250 53.98MM
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 5
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
