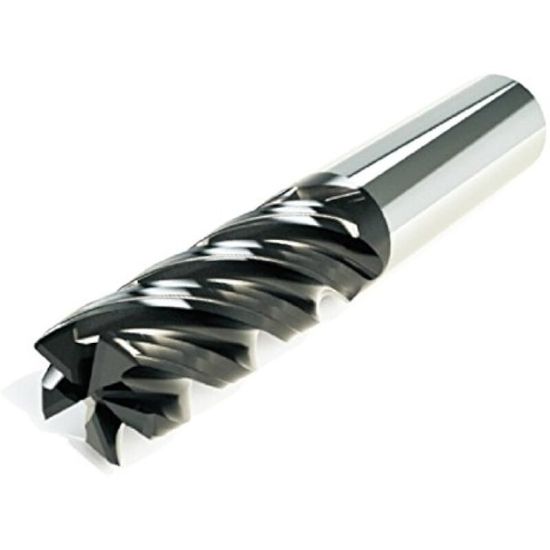

ICE 388-312-5-030R DIA 5/16 SH 0.3125 LOC 2.1250 OAL4.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius0.0300 0.76MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790104
Delivery date: 3-5 days
$60.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Additional Key Information 4 Variable Helix
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Coating ALL4
Package Size 1
Material # Material#8, Material#10, Material#16, Material#7
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 1 End Mill
Performance Rating High Performance
Shipping State Wisconsin
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Length Of Cut 2.1250 53.98MM
Length Type Standard
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 5
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Dimension Description 0.313 x 0.313 x 2.125 x 4.000
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side CYLINDRICAL0.3125
End Of Tool Shape Corner Radius
Helix Angle Variable
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 4.0000 101.60MM
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flute Length 2.1250 53.98MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Mold Yes
Medical Yes
Job Shop Yes
