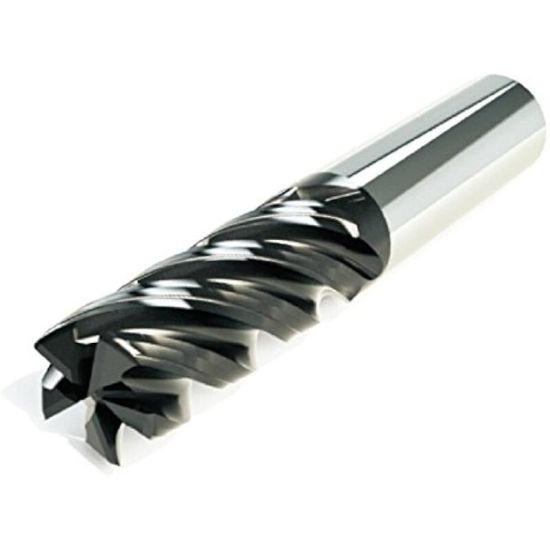

ICE 382-375-7-015R DIA 3/8 SH 0.3750 LOC 1.2500 OAL3.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius0.0150 0.38MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790118
Delivery date: 3-5 days
$70.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#7, Material#8, Material#10
Shipping State Wisconsin
Application Face Milling, Profile Milling, Copy Milling, Slot Milling, Side Milling
Performance Rating High Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 2 Corner Radius
Coating ALL4
Package Size 1
Sold by Pieces 1
Additional Key Information 4 Variable Helix
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Flutes/Inserts 7
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Dimension Description 0.375 x 0.375 x 1.250 x 3.000
Flute Length 1.2500 31.75MM
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 1.2500 31.75MM
Helix Angle Variable
Overall Len 3.0000 76.20MM
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
