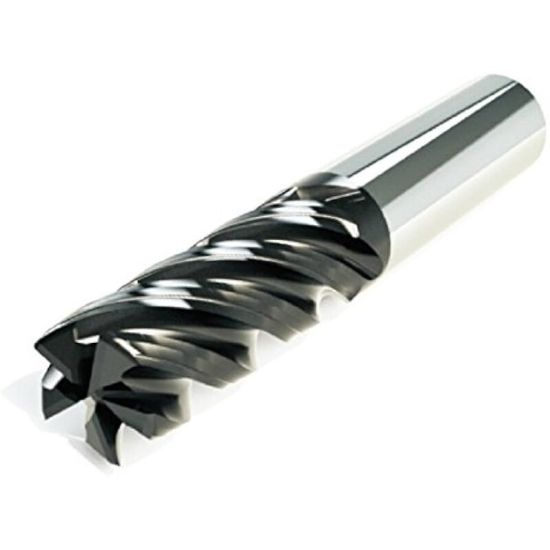

ICE 382-312-5 DIA 5/16 SH 0.3125 LOC 1.2500 OAL3.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Square Sharp Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790099
Delivery date: 3-5 days
$52.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10, Material#16, Material#7, Material#8
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 3 Standard Flute
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Wisconsin
Coating ALL4
Package Size 1
Additional Key Information 4 Variable Helix
Uncategorized
Made In USA No
Dimensional Specifications
End Of Tool Shape Square
Cutter Style Carbide Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side CYLINDRICAL0.3125
Length Of Cut 1.2500 31.75MM
Helix Angle Variable
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Single/Double End Single End
Dimension Description 0.313 x 0.313 x 1.250 x 3.000
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 5
Flute Length 1.2500 31.75MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
