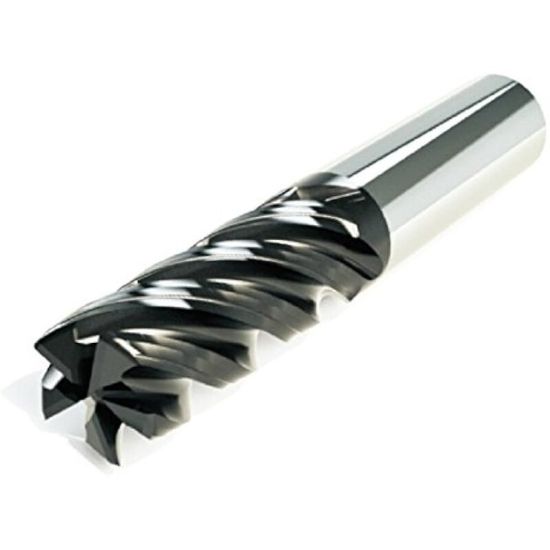

ICE 382-312-5-015R DIA 5/16 SH 0.3125 LOC 1.2500 OAL3.00 End Mill Standard Flute Variable Helix Carbide ALL4 Single End Corner Radius0.0150 0.38MM Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE790100
Delivery date: 3-5 days
$52.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Grey color;Ultra performance coating with extreme heat, abrasion & wear resistance in ferrous applications. The best coating on market for applications that need no particles left behind in machined part. Great for medical, food and reactor applications.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#7, Material#8, Material#10
Shipping State Wisconsin
Performance Rating High Performance
Additional Key Information 2 Corner Radius
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Coating ALL4
Package Size 1
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 4 Variable Helix
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Cutter Dia 0.3125 7.94MM - 5/16
Flute Length 1.2500 31.75MM
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Single/Double End Single End
Cut Rating <60HRC, Stainless, Cast Iron, High Temp
Machine Side CYLINDRICAL0.3125
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Corner Radius 0.0150 0.38MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Dimension Description 0.313 x 0.313 x 1.250 x 3.000
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Medical Yes
Aerospace Yes
Mold Yes
