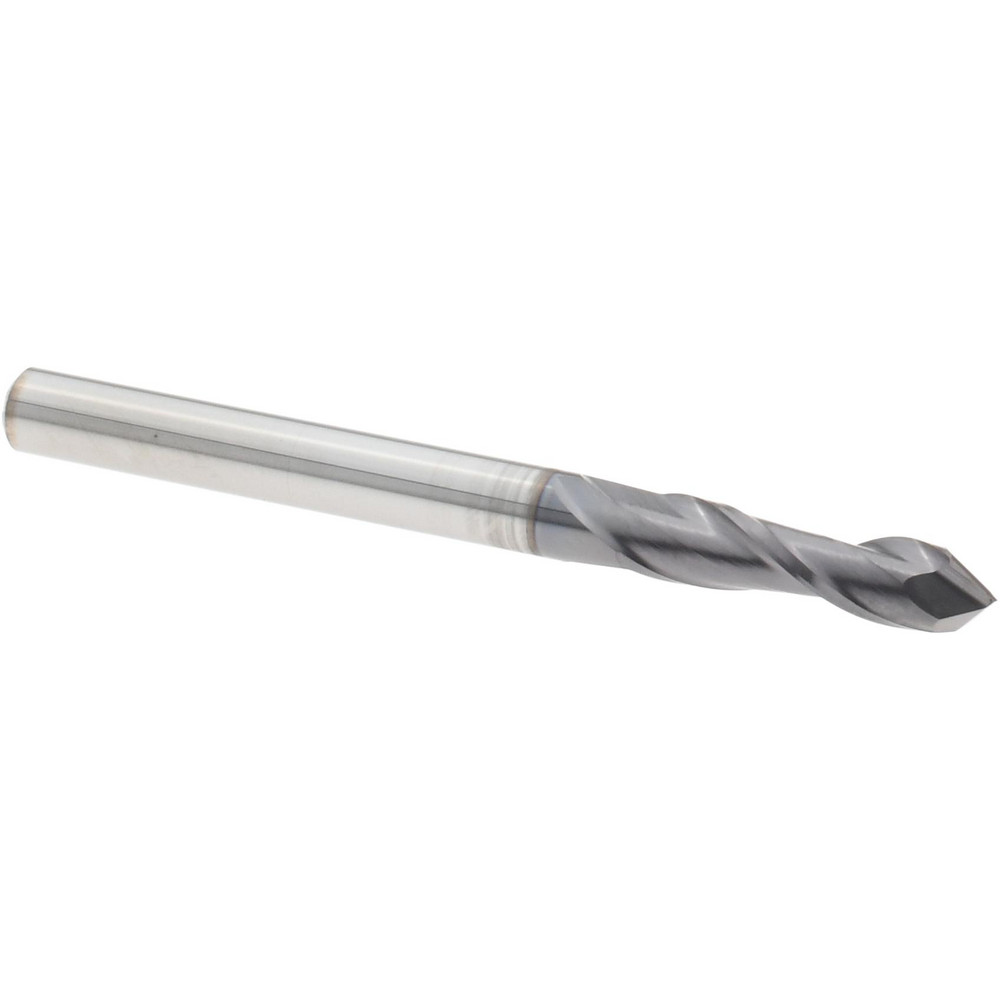

Picture of ICE 3/4 4Flt 1-1/2LOC 4OAL 3/4Shk RND SE 90DEG TiALN Carbide Drill/Mill Blue

ICE 3/4 4Flt 1-1/2LOC 4OAL 3/4Shk RND SE 90DEG TiALN Carbide Drill/Mill Blue

Part Number: ICE788903 0.750 x 0.750 x 1.500 x 4.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1179635
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Spot Drill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Spot Drill
Cutter Style Spot Drill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Flute Length 1.5000 38.10MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless, Cast Iron, <42HRC
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
