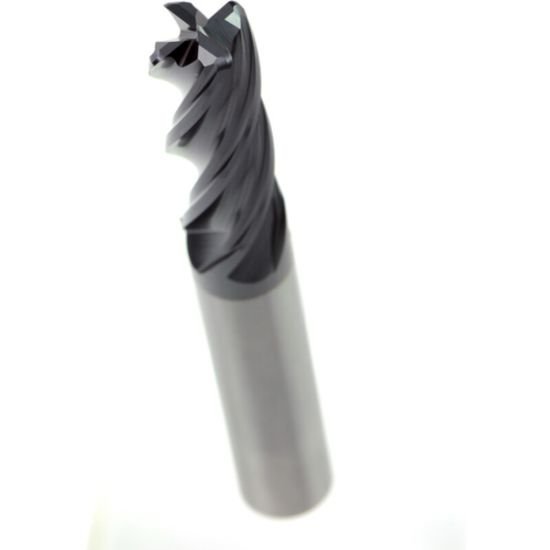

Picture of ICE 1/2 4Flt 5/8LOC 6OAL 1/2Shk RND SE .020CR TiALN Carbide End Mill Variable Helix Red

ICE 1/2 4Flt 5/8LOC 6OAL 1/2Shk RND SE .020CR TiALN Carbide End Mill Variable Helix Red

Part Number: ICE789518 0.500 x 0.500 x 0.625 x 6.000
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1180166
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.6250 15.88MM
Flute Length 0.6250 15.88MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless, <60HRC, High Temp, Cast Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
