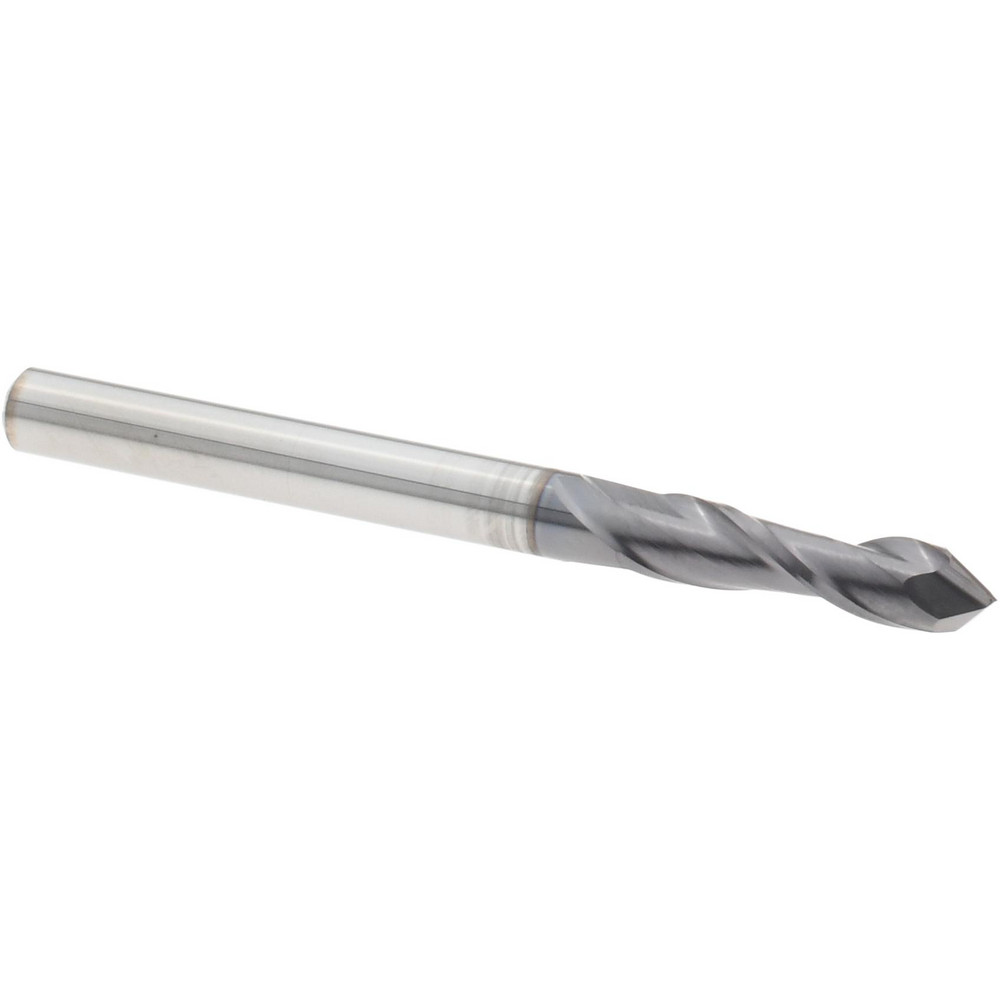

Picture of ICE 1/2 2Flt 1LOC 3OAL 1/2Shk RND SE 90DEG TiALN Carbide Drill/Mill Blue

ICE 1/2 2Flt 1LOC 3OAL 1/2Shk RND SE 90DEG TiALN Carbide Drill/Mill Blue

Part Number: ICE788898 0.500 x 0.500 x 1.000 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: 1179630
Vendor: Sussex Tool and Supply
$0.00
Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Spot Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, Cast Iron, <42HRC
Coating TiAlN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Spot Drill
Cutter Style Spot Drill
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Flute Length 1.0000 25.40MM
