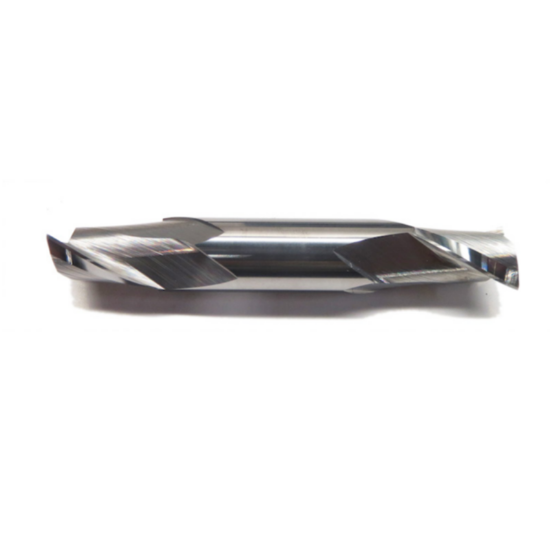

ICE 033-218-2 DIA 7/32 SH 0.2500 LOC 0.4375 OAL4.00 End Mill Standard Flute Standard Helix Carbide Double End Ball NoseBall Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE788392
Delivery date: 3-5 days
$37.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#17, Material#8, Material#15
Performance Rating General Performance
Sold by Pieces 1
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Wisconsin
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <42HRC, Cast Iron, Stainless
Length Of Cut 0.4375 11.11MM
Flute Length 0.4375 11.11MM
End Of Tool Shape Ball Nose
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutter Dia 0.2188 5.56MM - 7/32
Flutes/Inserts 2
Length Type Standard
Dimension Description 0.219 x 0.250 x 0.438 x 4.000
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Ball Finisher
Machine Side CYLINDRICAL0.2500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
Agricultural YES
Energy Yes
