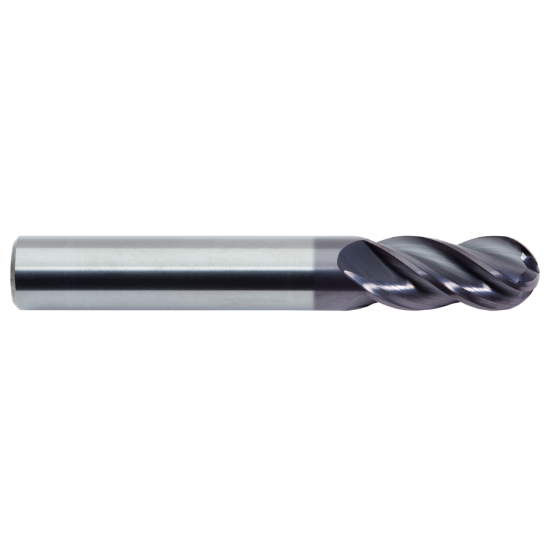

ICE 016-500-3 DIA 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide Single End Ball NoseBall Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE787472
Delivery date: 3-5 days
$36.54
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Additional Key Information 2 Ball Nose
Package Size 1
Material # Material#3, Material#17, Material#8, Material#15
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Shipping State Wisconsin
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 3.0000 76.20MM
Flute Length 1.0000 25.40MM
Helix Angle 30°
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Cut Rating <42HRC, Cast Iron, Stainless
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Tool Material Carbide
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side CYLINDRICAL0.5000
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Contractor Yes
