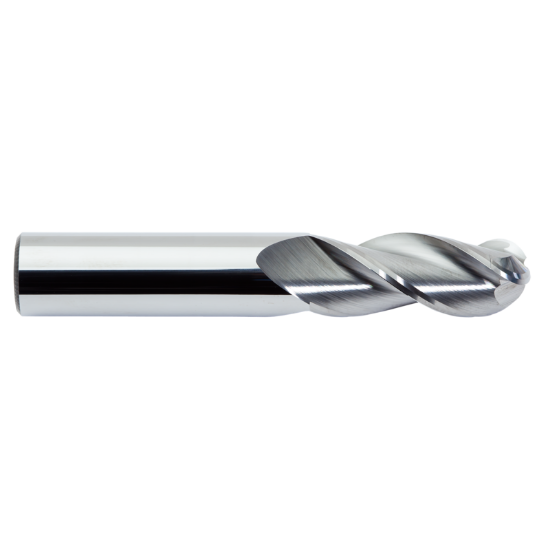

ICE 016-406-3 DIA 13/32 SH 0.4375 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide Single End Ball NoseBall Blue

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ICE
SKU: ICE787454
Delivery date: 3-5 days
$35.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Ball Slot Milling, Copy Milling, Profile Milling, Ball Milling, Side Milling
Material # Material#15, Material#8, Material#17, Material#3
Performance Rating General Performance
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Package Size 1
Shipping State Wisconsin
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Flute Length 0.8750 22.23MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.4062 10.32MM - 13/32
Machine Side CYLINDRICAL0.4375
Length Of Cut 0.8750 22.23MM
Length Type Standard
Cut Rating <42HRC, Cast Iron, Stainless
Flutes/Inserts 3
Dimension Description 0.406 x 0.438 x 0.875 x 2.500
End Of Tool Shape Ball Nose
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Contractor Yes
Job Shop Yes
