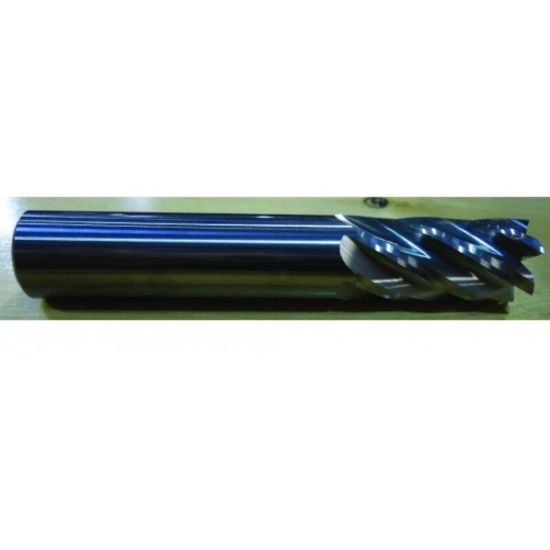

HTC 790-6500 DIA 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC790-6500
Delivery date: 3-5 days
$28.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Standard Flute
Application Slot Milling, Face Milling, Side Milling
Material # Material#15, Material#8, Material#17, Material#3
Shipping State Michigain
Package Size 1
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Length Type Standard
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Square
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Machine Side CYLINDRICAL0.5000
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
