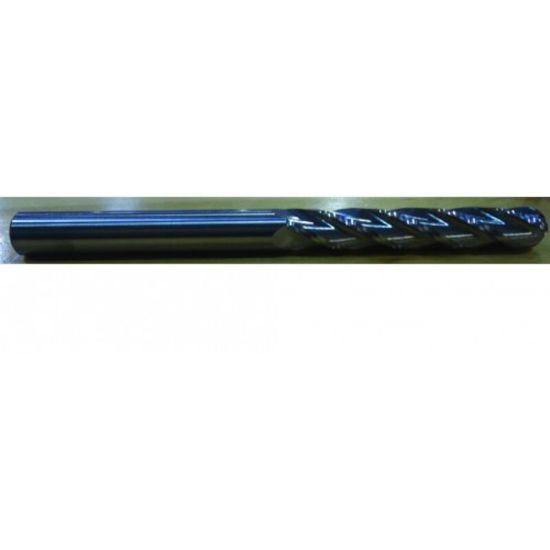

HTC 775-4508 DIA 1/2 SH 0.50 LOC 5.00 OAL8.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC775-4508
Delivery date: 3-5 days
$97.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#15, Material#17, Material#8
Sold by Pieces 1
Additional Key Information 2 Ball Nose
Package Size 1
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating General Performance
Shipping State Michigain
Uncategorized
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Ball Nose
Machine Side Connection Type Cylindrical
Helix Angle 30°
Flutes/Inserts 4
Length Type Long
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Length Of Cut 5.0000 127.00MM
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
Overall Len 8.0000 203.20MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 5.000 x 8.000
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side CYLINDRICAL0.5000
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
