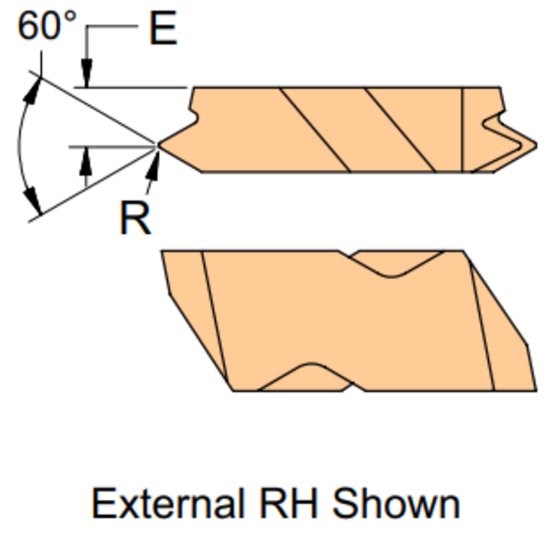

Picture of HTC 3R20E C23 Horizon 40480 Groove Threading,Threading Insert 0.0062 0.16mm Radius 20.00TPI UN

HTC 3R20E C23 Horizon 40480 Groove Threading,Threading Insert 0.0062 0.16mm Radius 20.00TPI UN

Part Number: HOR40480 ISO: HTC 3R20E C23 ANSI:HTC 3R20E C23
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023539
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 40480 Top Notch Groove Threading Positive Uncoated Premium C2-C3 Grade for Non-Ferrous Metals, Plastics and Non-Metals.
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Hand Right Hand
Thread Type UN
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 3
Thread Pitch 20.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0062 0.16MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Grade C23
