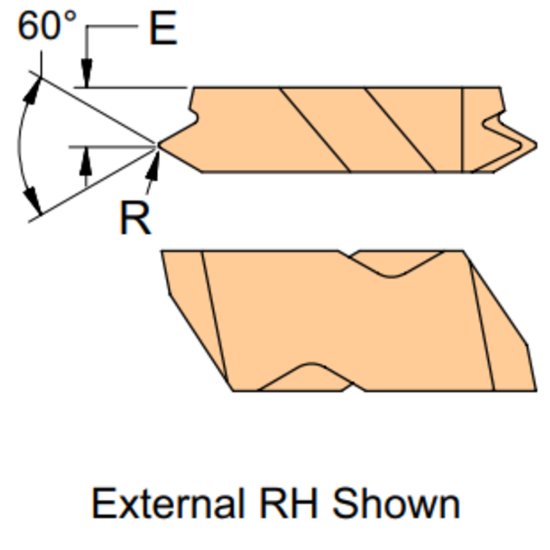

Picture of HTC 3L24I 323FG Horizon 32397 Groove Threading,Threading Insert 0.0015 0.04mm Radius 24.00TPI UN

HTC 3L24I 323FG Horizon 32397 Groove Threading,Threading Insert 0.0015 0.04mm Radius 24.00TPI UN

Part Number: HOR32397 ISO: HTC 3L24I 323FG ANSI:HTC 3L24I 323FG
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1023550

Description

HORIZON 32397 Top Notch Groove Threading Positive TiAIN + TiN STAINLESS STEELS AND HIGH TEMP ALLOYS, SOME NON-FARRUS APLICATIONS AND FOR NON-INTURUPTED
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Hand Left Hand
Thread Type UN
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 3
Thread Pitch 24.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0015 0.04MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 323FG
