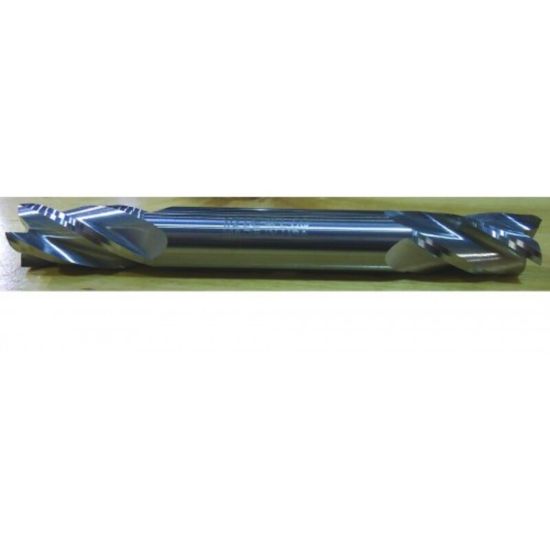

HTC 210-4750 DIA 3/4 SH 0.7500 LOC 1.50 OAL6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC210-4750
Delivery date: 3-5 days
$122.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#8, Material#3, Material#15
Additional Key Information 4 Standard Helix
Application Face Milling, Slot Milling, Side Milling
Shipping State Michigain
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 4
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 6.0000 152.40MM
Helix Angle 30°
Dimension Description 0.750 x 0.750 x 1.500 x 6.000
Machine Side Connection Type Weldon
Single/Double End Double End
Machine Side WELDON0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
