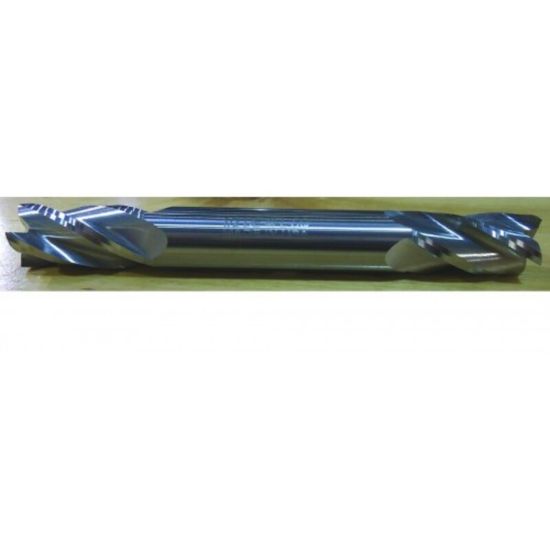

HTC 210-4343 DIA 11/32 SH 0.3750 LOC 0.7500 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC210-4343
Delivery date: 3-5 days
$30.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Slot Milling, Face Milling, Side Milling
Additional Key Information 4 Standard Helix
Material # Material#3, Material#15, Material#17, Material#8
Performance Rating General Performance
Shipping State Michigain
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.3438 8.73MM - 11/32
Machine Side WELDON0.3750
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Tool Material Carbide
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Dimension Description 0.344 x 0.375 x 0.750 x 3.500
Machine Side Connection Type Weldon
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
