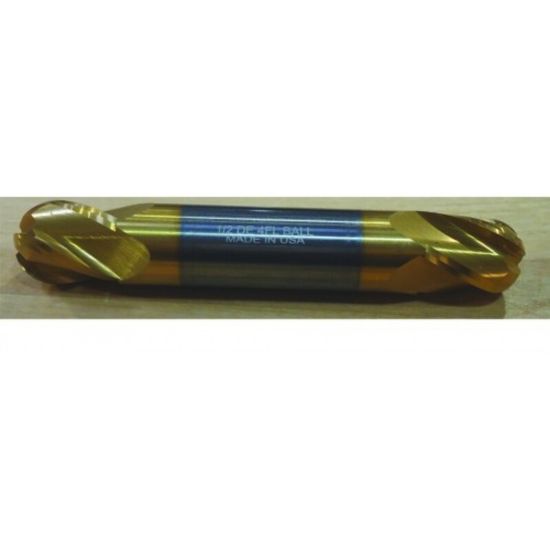

HTC 199-4625 DIA 5/8 SH 0.6250 LOC 0.6875 OAL3.50 End Mill Standard Flute Standard Helix Carbide TiN Double End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC199-4625
Delivery date: 3-5 days
$96.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#17, Material#15, Material#3
Additional Key Information 3 Standard Flute
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Coating TiN
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Additional Key Information 1 End Mill
Performance Rating General Performance
Shipping State Michigain
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side CYLINDRICAL0.6250
Cutter Style Carbide Ball Finisher
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Double End
Overall Len 3.5000 88.90MM
Length Of Cut 0.6875 17.46MM
Dimension Description 0.625 x 0.625 x 0.688 x 3.500
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
