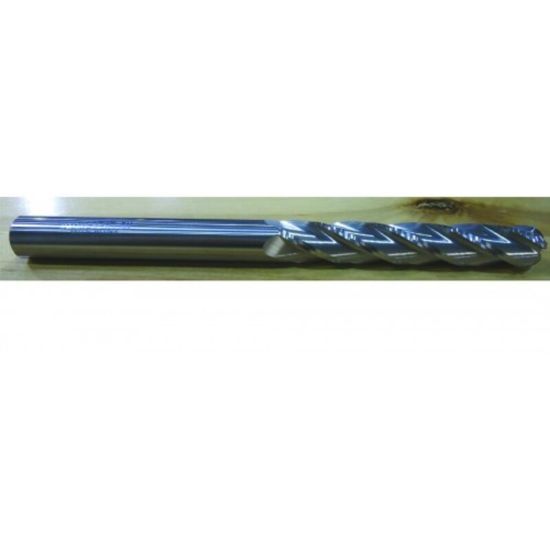

HTC 175-4125 DIA 1/8 SH 0.1250 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC175-4125
Delivery date: 3-5 days
$16.12
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling, Side Milling
Material # Material#3, Material#8, Material#15, Material#17
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Shipping State Michigain
Package Size 1
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Dimension Description 0.125 x 0.125 x 1.000 x 3.000
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
End Of Tool Shape Ball Nose
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side CYLINDRICAL0.1250
Overall Len 3.0000 76.20MM
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
