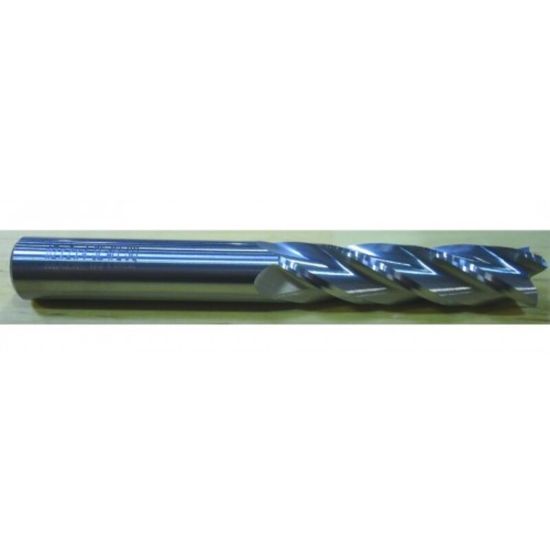

HTC 150-4312 DIA 5/16 SH 0.3125 LOC 1.1250 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC150-4312
Delivery date: 3-5 days
$18.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#8, Material#15, Material#3
Application Face Milling, Slot Milling, Side Milling
Shipping State Michigain
Package Size 1
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.313 x 0.313 x 1.125 x 3.000
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Square
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side CYLINDRICAL0.3125
Flutes/Inserts 4
Length Of Cut 1.1250 28.58MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
