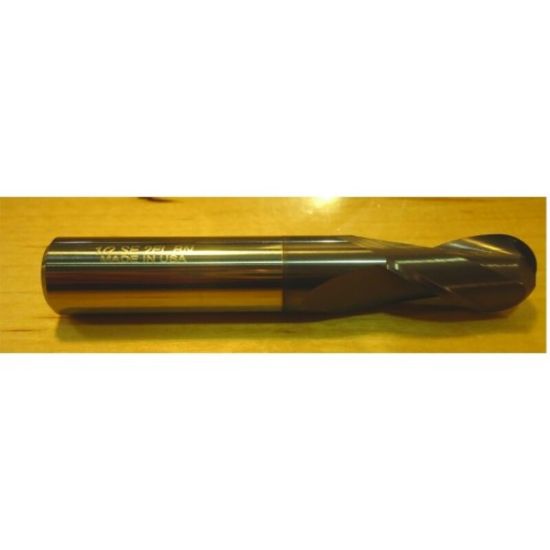

Picture of HTC 145-3390 Dia 25/64 SH 0.4375 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

HTC 145-3390 Dia 25/64 SH 0.4375 LOC 0.8750 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HTC145-3390 0.391 x 0.438 x 0.875 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: 1245465
Vendor: Sussex Tool and Supply
$41.46
HTC Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 3 Single End HTC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating ALTIN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 3
Tool Dia 0.3906 9.92MM - 25/64
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
