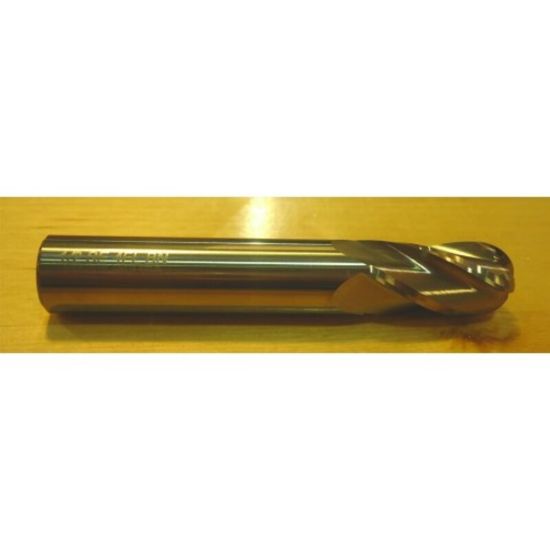

HTC 135-4203 DIA 13/64 SH 0.2500 LOC 0.6250 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-4203
Delivery date: 3-5 days
$13.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#17, Material#15, Material#3
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Shipping State Michigain
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Performance Rating General Performance
Additional Key Information 2 Ball Nose
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Length Type Standard
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Helix Angle 30°
Machine Side CYLINDRICAL0.2500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Dimension Description 0.203 x 0.250 x 0.625 x 2.500
End Of Tool Shape Ball Nose
Cutter Dia 0.2031 5.16MM - 13/64
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
