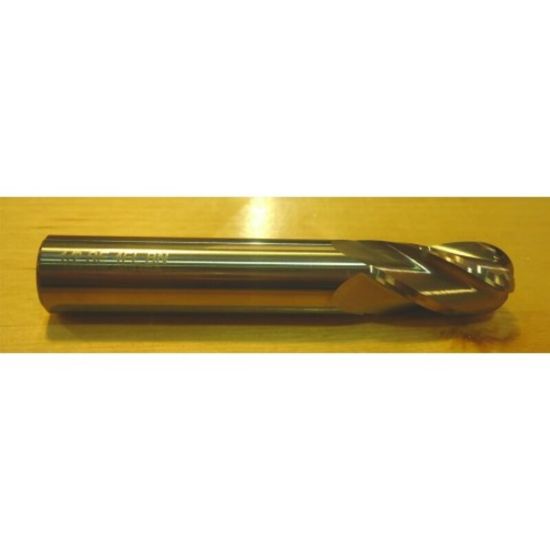

HTC 135-3953 DIA 61/64 SH 1.00 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-3953
Delivery date: 3-5 days
$182.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#17, Material#8, Material#3
Sold by Pieces 1
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Shipping State Michigain
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.9531 24.21MM - 61/64
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Machine Side Connection Type Cylindrical
Length Type Standard
Machine Side CYLINDRICAL1.0000
Length Of Cut 1.5000 38.10MM
Dimension Description 0.953 x 1.000 x 1.500 x 4.000
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
