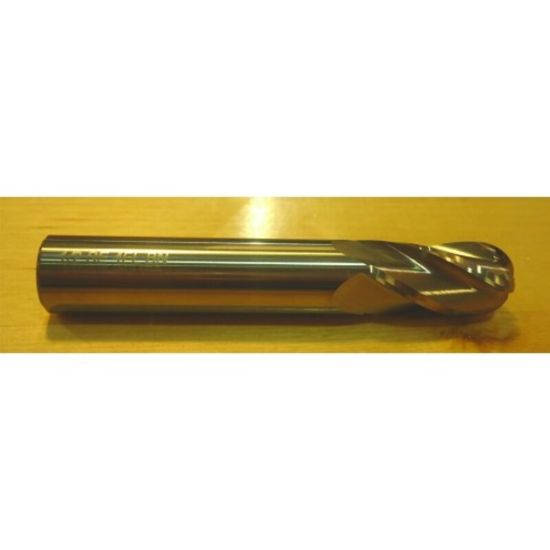

HTC 135-3531 DIA 17/32 SH 0.5625 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC135-3531
Delivery date: 3-5 days
$70.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#17, Material#15, Material#3
Application Profile Milling, Copy Milling, Side Milling, Ball Milling, Ball Slot Milling
Shipping State Michigain
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side CYLINDRICAL0.5625
Machine Side Connection Size 0.5625 14.29MM
Helix Angle 30°
Dimension Description 0.531 x 0.563 x 1.250 x 3.500
End Of Tool Shape Ball Nose
Cutter Dia 0.5313 13.50MM - 17/32
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 1.2500 31.75MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
