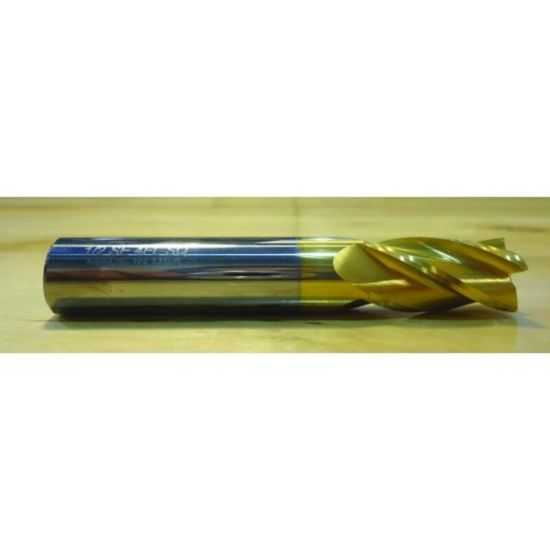

HTC 125-4906 DIA 29/32 SH 1.00 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC125-4906
Delivery date: 3-5 days
$163.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#17, Material#8, Material#3
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Slot Milling, Face Milling
Coating TiN
Additional Key Information 4 Standard Helix
Shipping State Michigain
Sold by Pieces 1
Additional Key Information 2 Sharp
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Standard
Dimension Description 0.906 x 1.000 x 1.500 x 4.000
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Cutter Dia 0.9063 23.02MM - 29/32
Overall Len 4.0000 101.60MM
Helix Angle 30°
Machine Side CYLINDRICAL1.0000
Flutes/Inserts 4
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
