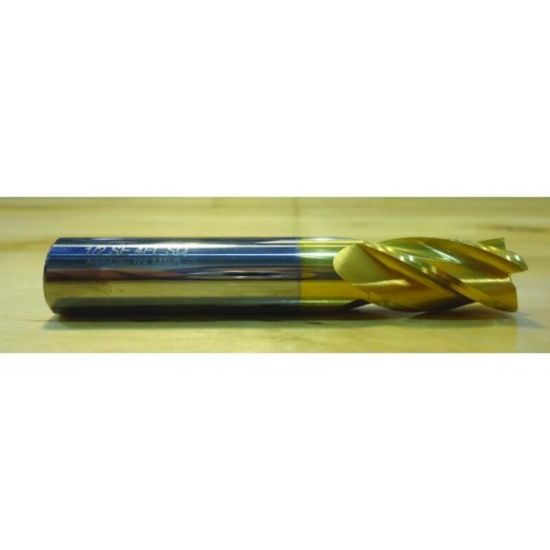

HTC 125-3703 DIA 45/64 SH 0.7500 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC125-3703
Delivery date: 3-5 days
$94.12
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#8, Material#3, Material#15
Additional Key Information 4 Standard Helix
Application Face Milling, Slot Milling, Side Milling
Shipping State Michigain
Package Size 1
Additional Key Information 3 Standard Flute
Coating TiN
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.7031 17.86MM - 45/64
Length Type Standard
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Dimension Description 0.703 x 0.750 x 1.500 x 4.000
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side CYLINDRICAL0.7500
Overall Len 4.0000 101.60MM
Helix Angle 30°
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
