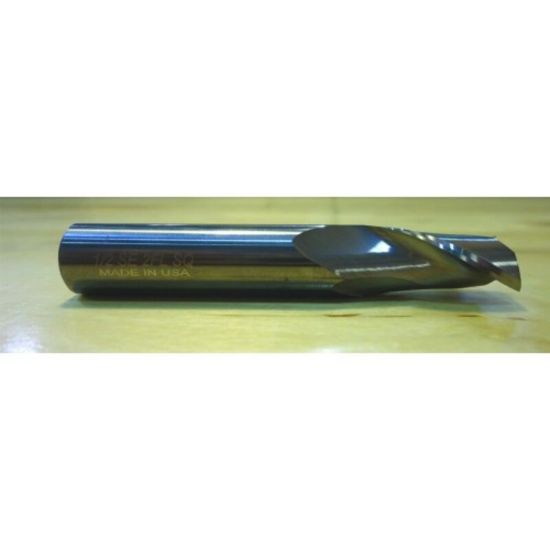

HTC 120-3656 DIA 21/32 SH 0.7500 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC120-3656
Delivery date: 3-5 days
$85.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 2 Sharp
Application Side Milling, Face Milling, Slot Milling
Material # Material#8, Material#3, Material#17, Material#15
Shipping State Michigain
Additional Key Information 4 Standard Helix
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL0.7500
Overall Len 4.0000 101.60MM
Helix Angle 30°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
End Of Tool Shape Square
Dimension Description 0.656 x 0.750 x 1.500 x 4.000
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Standard
Cutter Dia 0.6563 16.67MM - 21/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
