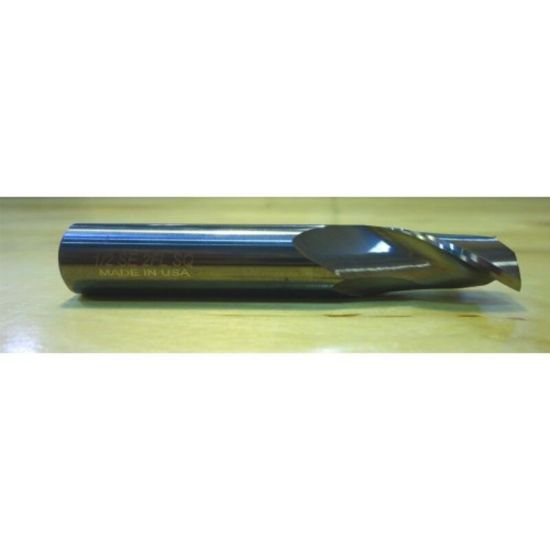

HTC 120-2375 DIA 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HTC
SKU: HTC120-2375
Delivery date: 3-5 days
$14.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#8, Material#17, Material#3
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Application Side Milling, Face Milling, Slot Milling
Additional Key Information 3 Standard Flute
Shipping State Michigain
Package Size 1
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Single/Double End Single End
Flutes/Inserts 2
Dimension Description 0.375 x 0.375 x 1.000 x 2.500
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
