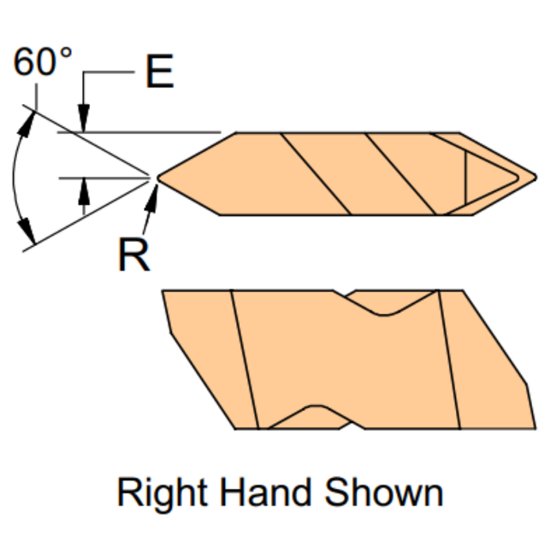

Picture of HT 4R 323FG Horizon 32272 Groove Threading,Threading Insert 0.0065 0.17mm Radius Ext 4.00TPI - 20.00TPI Int 4.00TPI - 12.00TPI 60.0°

HT 4R 323FG Horizon 32272 Groove Threading,Threading Insert 0.0065 0.17mm Radius Ext 4.00TPI - 20.00TPI Int 4.00TPI - 12.00TPI 60.0°

Part Number: HOR32272 ISO: HT 4R 323FG ANSI:HT 4R 323FG
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1023436

Description

HORIZON 32272 Top Notch Groove Threading Positive TiAIN + TiN STAINLESS STEELS AND HIGH TEMP ALLOYS, SOME NON-FARRUS APLICATIONS AND FOR NON-INTURUPTED
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Hand Right Hand
Thread Type 60.0°
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 4
Thread Pitch EXT 4.00TPI - 20.00TPI INT 4.00TPI - 12.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0065 0.17MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 323FG
