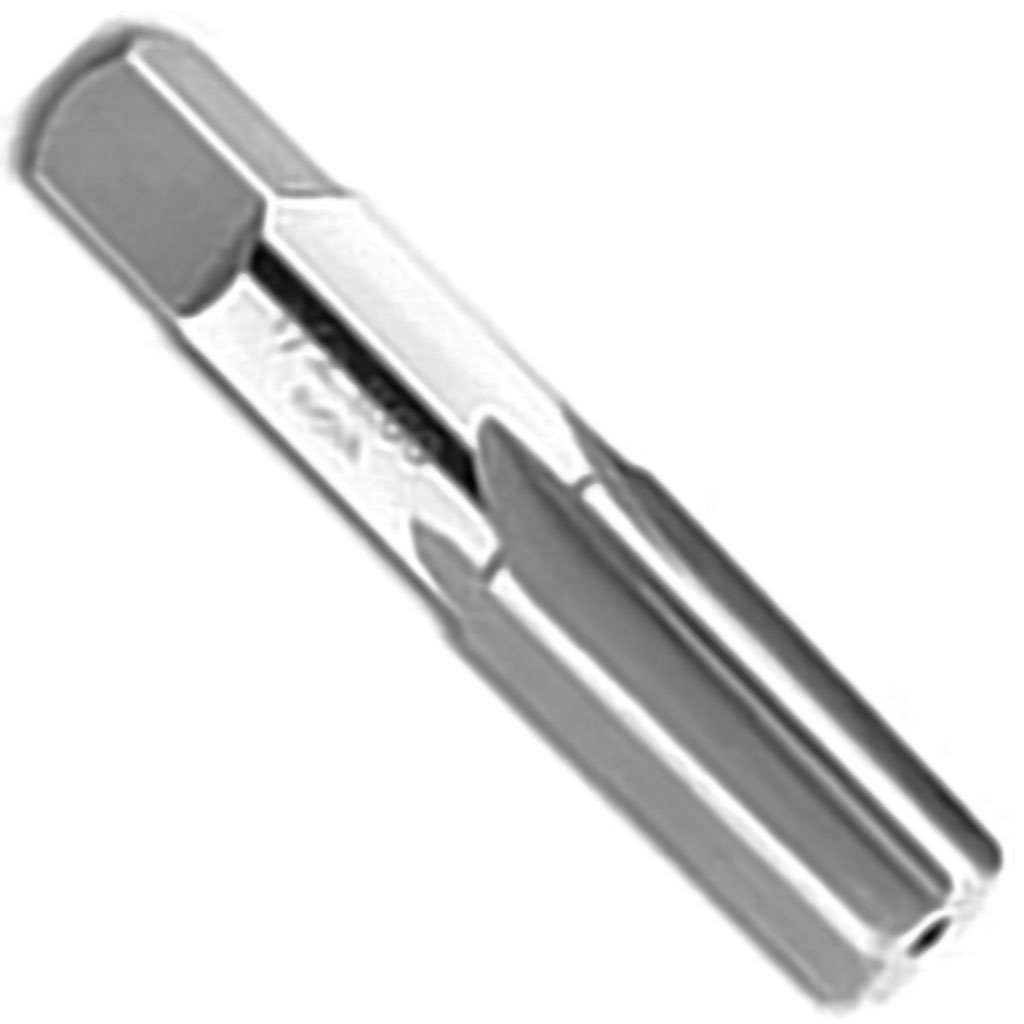

Picture of HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 3/8" size with .606 large end diameter x .540 small end diameter and 1-1/16" flute length x 2-9/16" overall length (OAL), 6 Flute

HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 3/8" size with .606 large end diameter x .540 small end diameter and 1-1/16" flute length x 2-9/16" overall length (OAL), 6 Flute

Part Number: TOO5-060-020
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1425950
Vendor: Sussex Tool and Supply
$35.26

Description

Hss Tmx Taper Pipe Reamers With 3/4" Taper Per Foot, Straight Flute, Hss, 3/8" Size With .606 Large End Diameter X .540 Small End Diameter And 1-1/16" Flute Length X 2-9/16" Overall Length (Oal), 6 Flute High Speed Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Reamer
Type Of Tool Solid Round
Reamer Type Pipe
Dimensions & Sizing
Overall Length 2.5625 65.09MM
Flutes/Inserts 6
Tool Dia 0.3750 9.53MM - 3/8
Flute Length 1.0630 27.00MM
Performance & Capacity
Cut Dia Min 0.5400 13.72MM
Cut Dia Max 0.6068 15.41MM
Materials & Finish
Tool Material High Speed Steel
