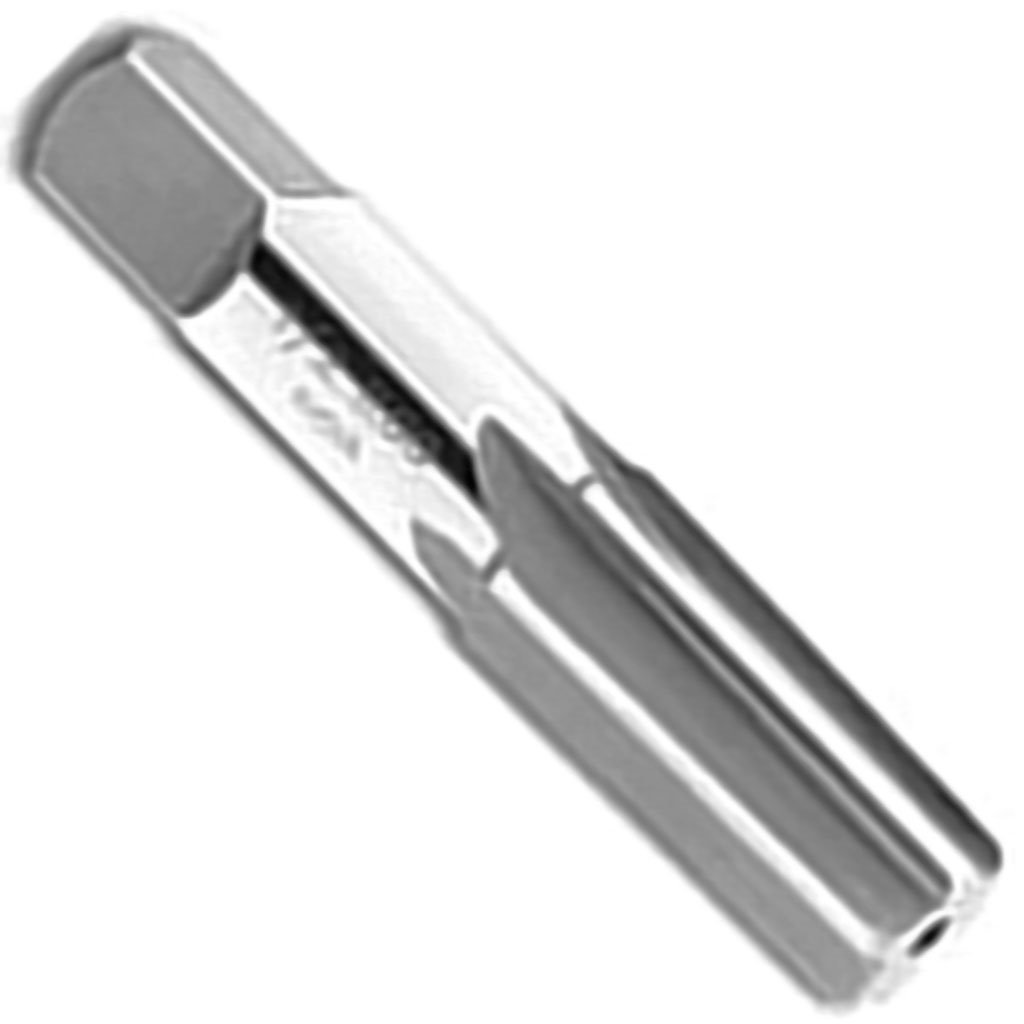

Picture of HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 1" size with 1.212 large end diameter x 1.103 small end diameter and 1-3/4" flute length x 3-3/4" overall length (OAL), 10 Flute

HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 1" size with 1.212 large end diameter x 1.103 small end diameter and 1-3/4" flute length x 3-3/4" overall length (OAL), 10 Flute

Part Number: TOO5-060-035
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1425953
Vendor: Sussex Tool and Supply
$80.44

Description

Hss Tmx Taper Pipe Reamers With 3/4" Taper Per Foot, Straight Flute, Hss, 1" Size With 1.212 Large End Diameter X 1.103 Small End Diameter And 1-3/4" Flute Length X 3-3/4" Overall Length (Oal), 10 Flute High Speed Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Reamer
Type Of Tool Solid Round
Reamer Type Pipe
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Flutes/Inserts 10
Tool Dia 1.0000 25.40MM
Flute Length 1.7500 44.45MM
Performance & Capacity
Cut Dia Min 1.1034 28.03MM
Cut Dia Max 1.2120 30.91MM
Materials & Finish
Tool Material High Speed Steel
